不锈钢网是一种采用不锈钢丝（304 304L 316 316L等）为原料编织而成的一种丝网深加工制品。

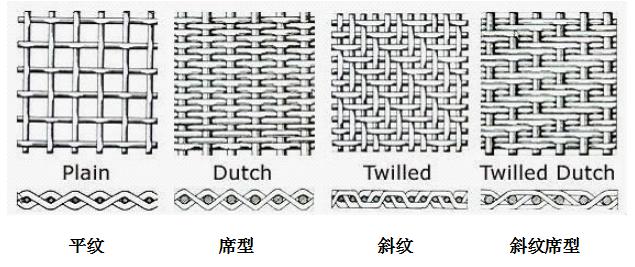

编织方法：平纹、斜纹、密纹编织等方式。
经目数与纬目数一样的编织网的孔是正方形的，也叫方孔网或单层网。
性能特点：由于不锈钢材质自身特点，使加工而成的不锈钢网具有耐磨强度高、使用寿命长、网孔精确、结构统一、不卷曲，易使用、筛网厚度均匀、抗静电、抗酸碱、耐腐蚀,产品具耐酸、耐碱、耐温、耐磨等性能的特点，因此，近年来，不锈钢网被广泛用于煤矿、石油、化工、食品、医药、机械制造等行业作为矿筛网使用。
使用环境：不锈钢网主要用于酸，碱环境条件下筛分和过滤。主要作为石油工业作泥浆网、化工化纤工业作筛滤网、电镀工业作酸洗网来使用。
规格表：
目数 | 丝径 | 孔径 | 开孔率% |
英寸 | 毫米 | 英寸 | 毫米 |
1x1 | .080 | 2.03 | .920 | 23.37 | 84.6 |
2X2 | .063 | 1.60 | .437 | 11.10 | 76.4 |
3X3 | .054 | 1.37 | .279 | 7.09 | 70.1 |
4X4 | .063 | 1.60 | .187 | 4.75 | 56.0 |
4X4 | .047 | 1.19 | .203 | 5.16 | 65.9 |
5X5 | .041 | 1.04 | .159 | 4.04 | 63.2 |
6X6 | .035 | .89 | .132 | 3.35 | 62.7 |
8X8 | .028 | .71 | .097 | 2.46 | 60.2 |
10X10 | .025 | .64 | .075 | 1.91 | 56.3 |
10X10 | .020 | .51 | .080 | 2.03 | 64.0 |
12X12 | .023 | .584 | .060 | 1.52 | 51.8 |
12X12 | .020 | .508 | .063 | 1.60 | 57.2 |
14X14 | .023 | .584 | .048 | 1.22 | 45.2 |
14X14 | .020 | .508 | .051 | 1.30 | 51.0 |
16X16 | .018 | .457 | .0445 | 1.13 | 50.7 |
18X18 | .017 | .432 | .0386 | .98 | 48.3 |
20X20 | .020 | .508 | .0300 | .76 | 36.0 |
20X20 | .016 | .406 | .0340 | .86 | 46.2 |
24X24 | .014 | .356 | .0277 | .70 | 44.2 |
30X30 | .013 | .330 | .0203 | .52 | 37.1 |
30X30 | .012 | .305 | .0213 | .54 | 40.8 |
30X30 | .009 | .229 | .0243 | .62 | 53.1 |
40X40 | .010 | .254 | .0150 | .38 | 36.0 |
50X50 | .009 | .229 | .0110 | .28 | 30.3 |
50X50 | .008 | .203 | .0120 | .31 | 36.0 |
60X60 | .0075 | .191 | .0092 | .23 | 30.5 |
60X60 | .007 | .178 | .0097 | .25 | 33.9 |
80X80 | .0055 | .140 | .0070 | .18 | 31.4 |
100X100 | .0045 | .114 | .0055 | .14 | 30.3 |
100X100 | .004 | .102 | .0060 | .15 | 36.0 |
100X100 | .0035 | .089 | .0065 | .17 | 42.3 |
120X120 | .0037 | .0940 | .0064 | .1168 | 30.7 |
150X150 | .0026 | .0660 | .0041 | .1041 | 37.4 |
180X180 | .0023 | .0584 | .0033 | .0838 | 34.7 |
200X200 | .0021 | .0533 | .0029 | .0737 | 33.6 |
250X250 | .0016 | .0406 | .0024 | .0610 | 36.0 |
270X270 | .0016 | .0406 | .0021 | .0533 | 32.2 |
300X300 | .0051 | .0381 | .0018 | .0457 | 29.7 |
325X325 | .0014 | .0356 | .0017 | .0432 | 30.0 |
400X400 | .0010 | .0254 | .0015 | .370 | 36.0 |
500X500 | .0010 | .0254 | .0010 | .0254 | 25.0 |
635X635 | .0008 | .0203 | .0008 | .0203 | 25.0 |
不锈钢席型网 （平织)
Stainless Steel Wire Cloth(Plain Dutch Weave) |
目数
Mesh/Inch | 丝径(毫米)
Wire Diameter(MM) | 孔径（微米）
Aperture
Microns |
经目×纬目
Vertical×Horizontal | 经丝×纬丝
Vertical×Horizontal |
12×64 | 0.58×0.40 | 270-290um |
14×88 | 0.50×0.33 | 220-240um |
24×110 | 0.35×0.25 | 115-125um |
30×150 | 0.23×0.18 | 95-100um |
40×200 | 0.18×0.14 | 70-75um |
50×250 | 0.14×0.11 | 60-63um |
不锈钢席型网 （斜织)
Stainless Steel Wire Cloth(Twill Dutch Weave) |
目数
Mesh/Inch | 丝径(毫米)
Wire Diameter(MM) | 孔径（微米）
Aperture
Microns |
经目×纬目
Vertical×Horizontal | 经丝×纬丝
Vertical×Horizontal |
20×250 | 0.25×0.23 | 110-120um |
32×360 | 0.23×0.15 | 100-110um |
40×400 | 0.18×0.14 | 90-110um |
50×500 | 0.14×0.11 | 70-90um |
50×600 | 0.14×0.09 | 60-70um |
80×800 | 0.12×0.07 | 45-65um |
165×800 | 0.07×0.05 | 24-26um |
120×1000 | 0.08×0.055 | 27-28um |
165×1450 | 0.071×0.04 | 16-18um |
325×2300 | 0.038×0.025 | 8-9um |
400×3100 | 0.035×0.019 | 3um |
